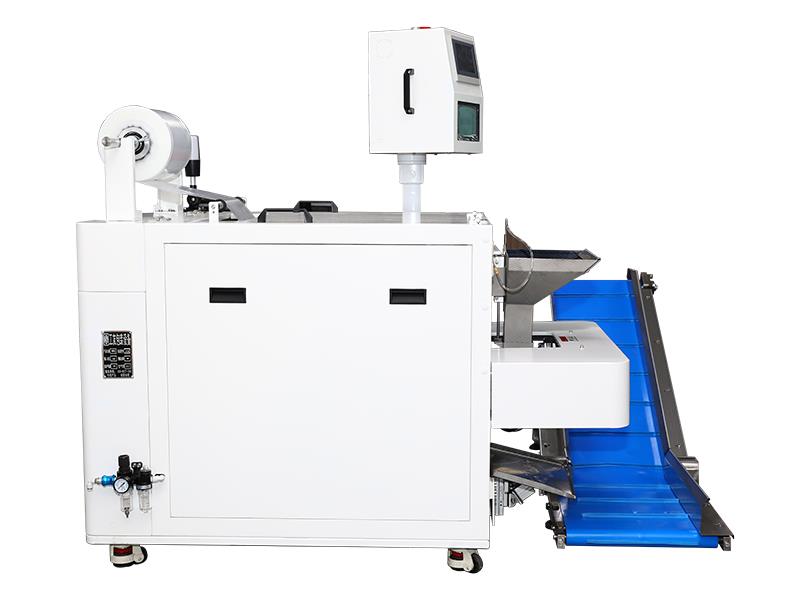

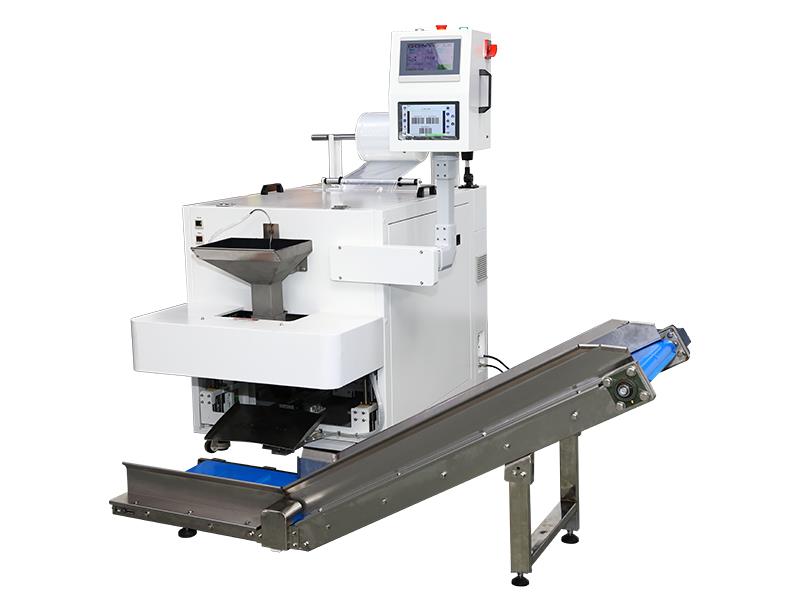

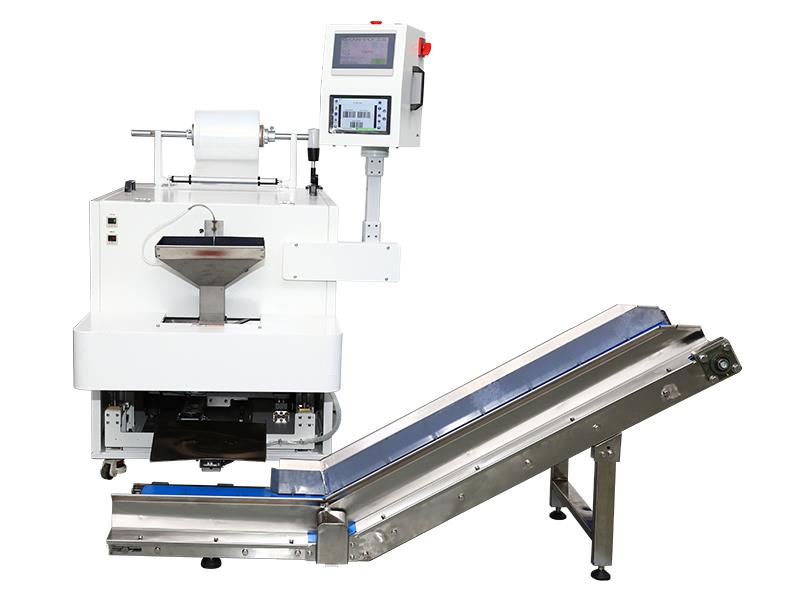

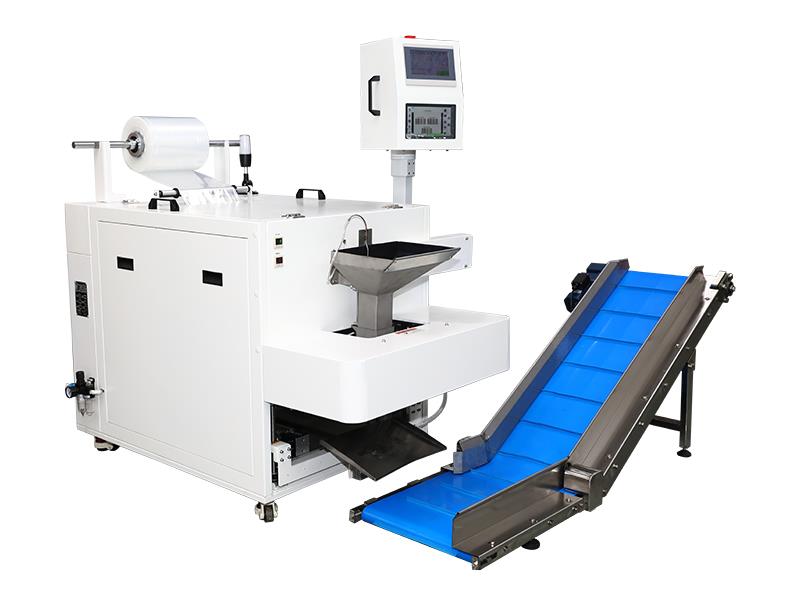

The barrel bag packaging machine integrates automatic metering, filling and sealing. It is suitable for hardware accessories, chemicals, building materials, grain, feed and other industries, and can handle materials in various forms.
Structural composition Measuring equipment: ensure the same weight of each bag.

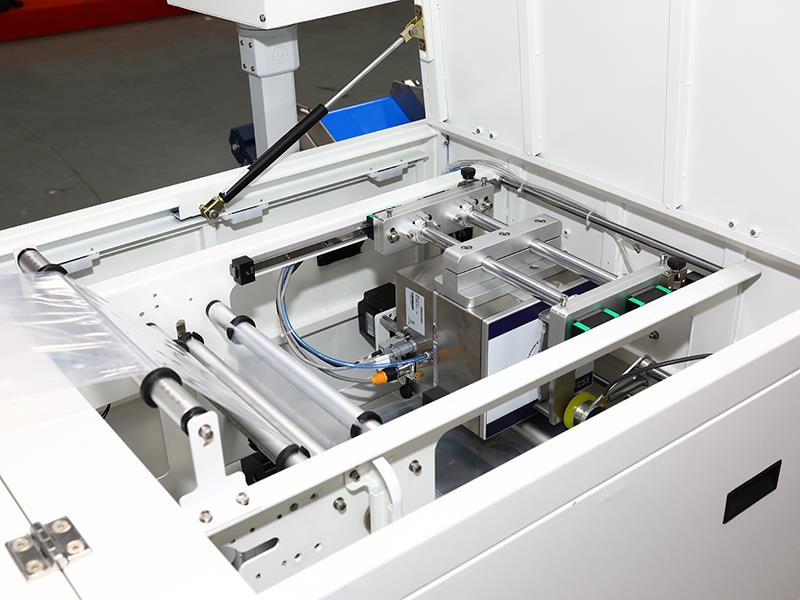

Transmission device: drive the packaging bag to move. Horizontal and vertical sealing equipment: seal the packaging bag.
Forming device: fold the plastic film into a barrel shape.
Filling tube and plastic film stretching and feeding organization: fill the material and ensure the uniform stretching of the film.
The barrel bag packaging machine is efficient, stable and automated. It is an indispensable packaging equipment for modern industrial production, which can improve efficiency, reduce costs and ensure packaging quality.
The main technical paramete:
| Name | Bucket bag packaging machine |
| Production capacity(bag/min) | 6--8 |
| Measuring range(Kg) | 1--8 |
| Bag making forms | Bag |
| Total power(KW) | 2 |
| Weight(Kg) | 350 |
| Power supply voltage | 220V 50-60HZ 380 50HZ |
| Bag size(mm) | Length:400 Wide:150-350 |
| Packaging materials | Bag |

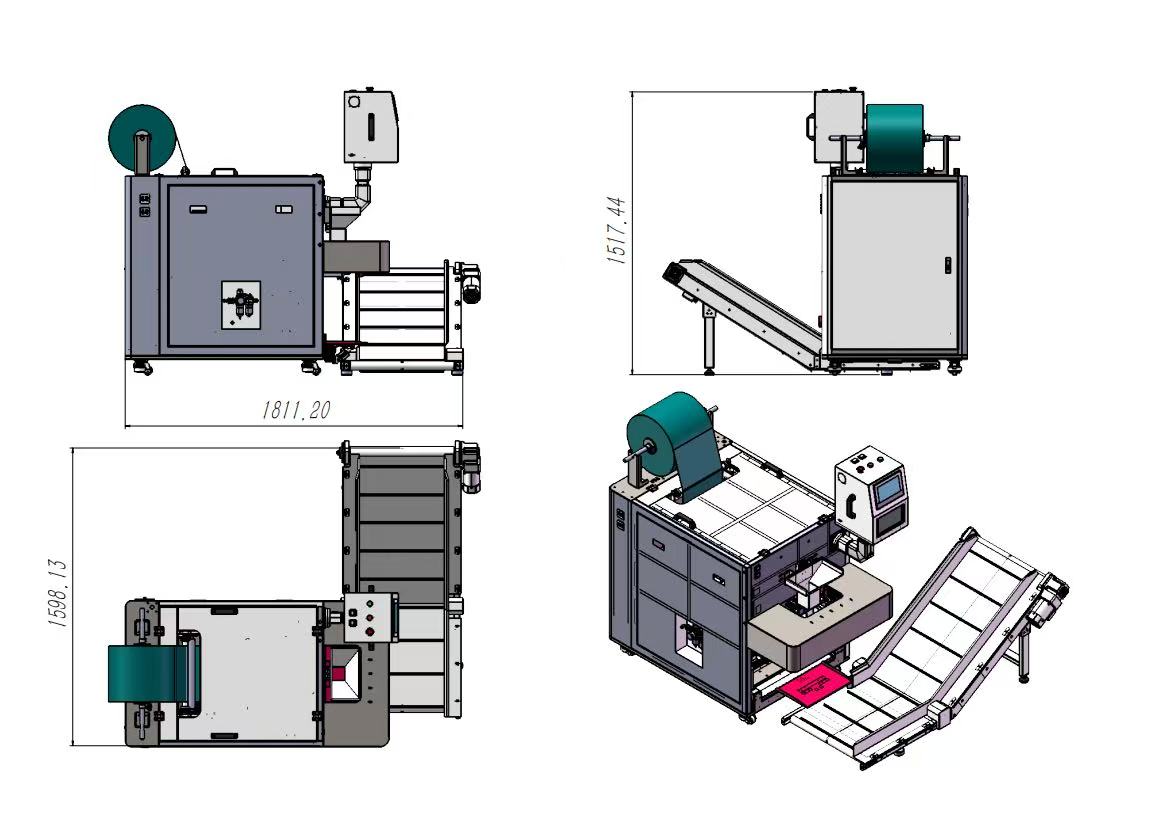

| Dimensions(mm) | 1811 x 1598 x 1517 |
